8MB PSRAM Chip for Teensy 4.1

The 8MB PSRAM Chip for Teensy 4.1 expands your Teensy 4.1 with an additional 8MB of RAM, ideal for memory-intensive applications and advanced embedded projects.

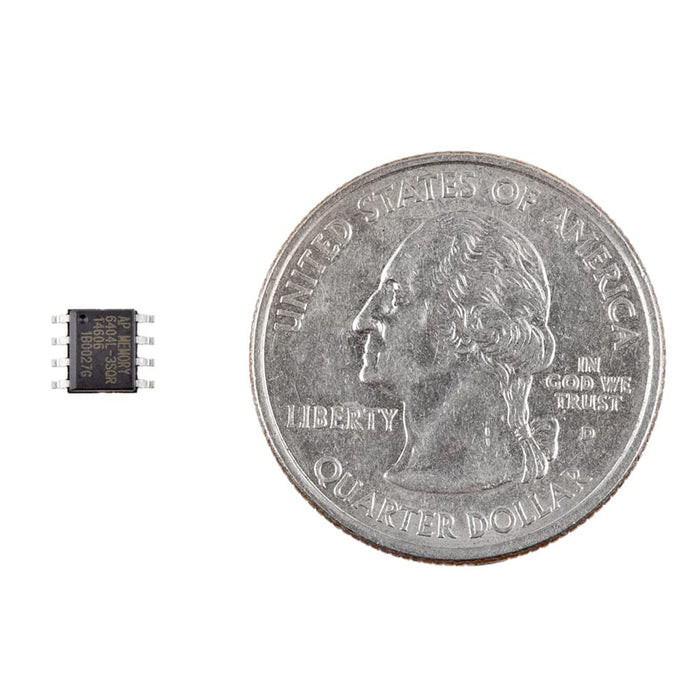

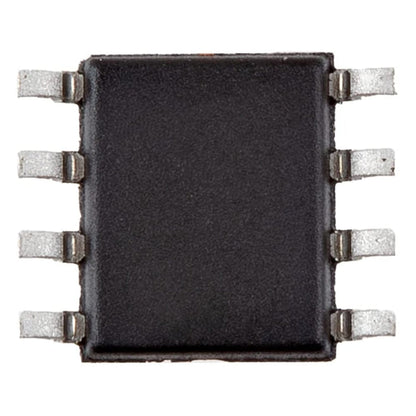

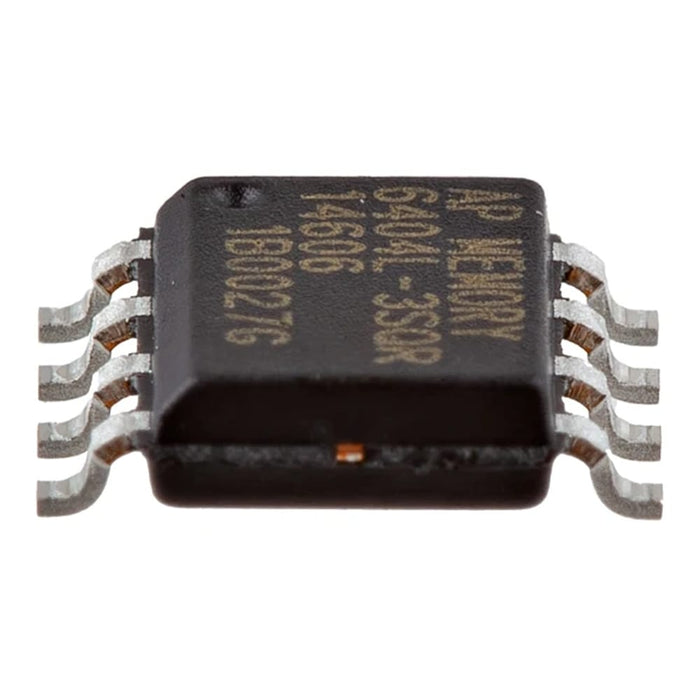

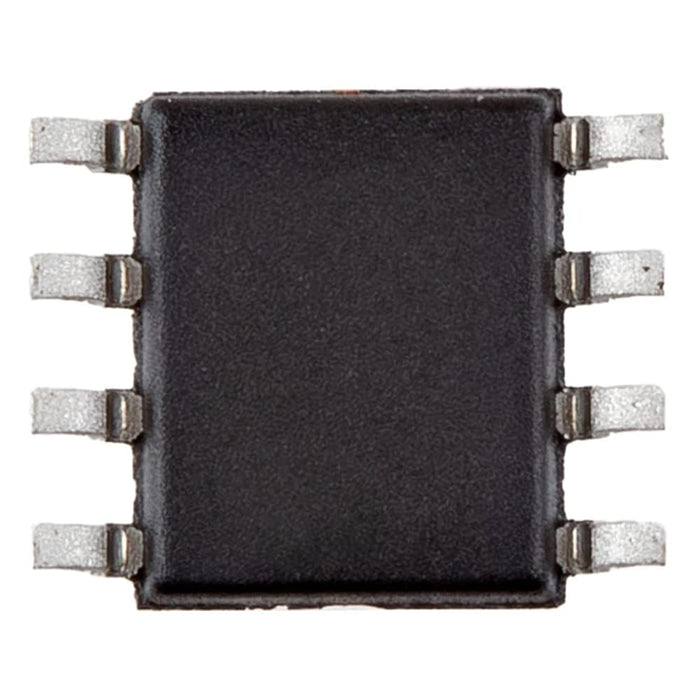

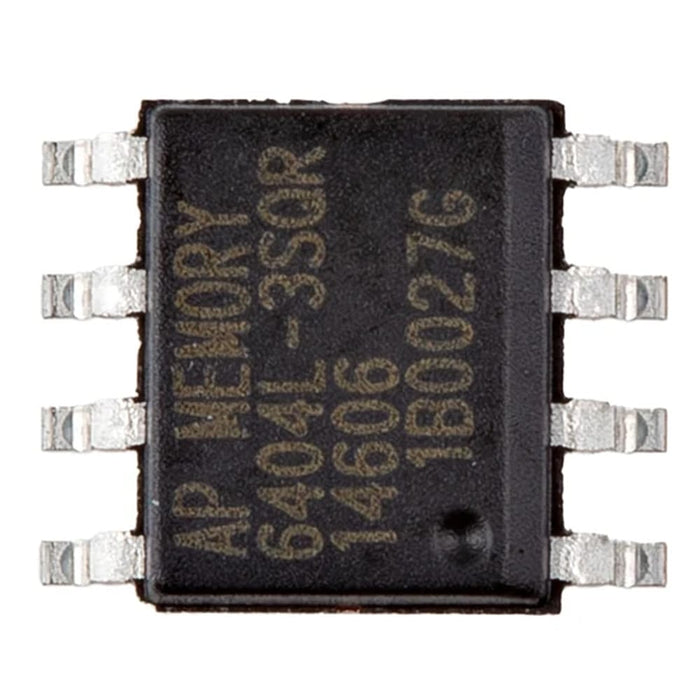

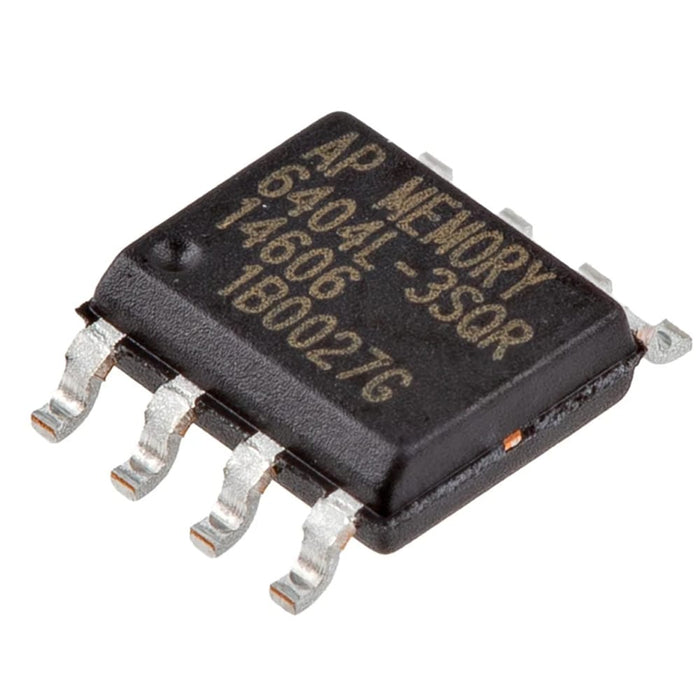

This PSRAM chip can add 8 Megabytes of RAM for use on Teensy 4.1.

The PSRAM chip is meant to be soldered to the smaller pads on the bottom side of Teensy 4.1, underneath the SD card socket, between pins 31-32 and 33-34. Do not use the larger pads.

A single PSRAM chip must be soldered to the smaller pads to be detected. If 8 MB isn't enough, check out our 16MB PSRAM Chip for Teensy 4.1!

Features and Specifications

• Memory Size: 64 Mbit
• Memory Type: PSRAM
• Organization: 8 M x 8
• Clock Frequency: 84MHz for Linear Burst operation
• Interface Type: SPI/QPI with SDR mode
• Supply Voltage - Max: 3.6V
• Supply Voltage - Min: 2.7V
• Maximum Standby Current:
• 350µA @ 105°C
• 250µA @ 85°C
• 140µA @ 25°C
• Operating Temperature Range:
• Tc = -40°C to +85°C (standard range)
• Tc = -40°C to +105°C (extended range)
• Mounting: SMD/SMT
• Package: SOP-8L(150)

Resources

• Teensy 4.1 Hook-up Details
• Memory Test Program
• Datasheet (APS6404L-3SQR)

Package Contents

• 1x 8MB PSRAM Chip for Teensy 4.1
