Dodge Truck CB Mounting Hood Kit
- Complete CB mounting kit designed specifically for 1994-2003 Ram and Dakota pickups
Description
We packaged this kit up and practically tied it with a bow for all you Dodge Truck owners. Designed specifically for 1994-2003 Dodge and Ram truck owners, this kit includes a rust-resistant, stainless steel, no-drill fender bolt mount and Procomm Pro Ring 9' Coax Cable with FME with a weather-resistant ring connection and low profile. Recommended for antennas up to 4’ tall.
Specs
| Model / SKU: | Firestik MK-184R |
|
|
Installation on 1994 to 2003 Dodge Ram and Dakota pick-ups. Due to body changes made in 2004, this mount will not fit 2004 and newer vehicles. Please see the 2004 - 2008 Dodge Mount instead. |
| Compatible with: | All fiberglass & center-load antennas that use a standard 3/8" x 24 threaded base. The mount is recommend for antennas up to 4' in length. |
| Installation Notes: |

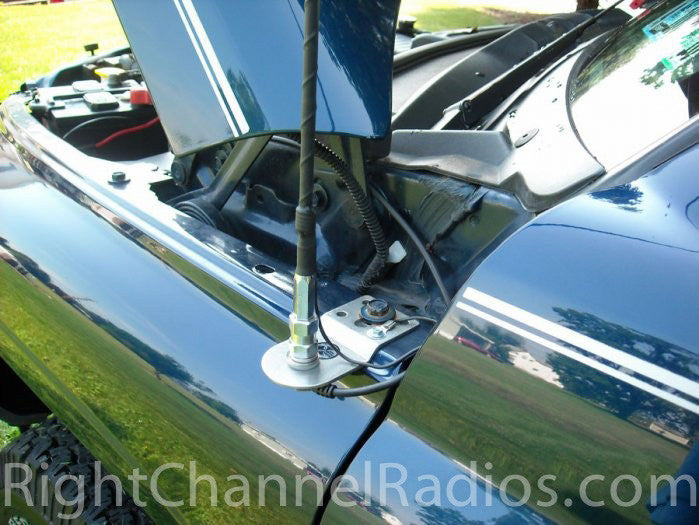

Important Note: The PL-259 connector (radio screw-on end) is supplied in this kit but is NOT installed on the coax cable. This allows the cable to be routed into the vehicle through a smaller (0.375") hole. After the connector is placed on the coax, the center must be soldered to the PL connector. When the hood is open, the fender bolt near the firewall is removed (right or left side) and later reused to bolt the antenna bracket to the under-hood fender lip. All mounting hardware is invisible unless the hood is open. Additional stainless steel sheet metal screws are supplied if additional strength is determined to be needed. The bracket has a pre-determined bend and does not interfere with the closing of the hood. |
| Mount Location: | Hood / Fender |
| Stud Type: | Lug (Ring and Terminal) |
| Material: | Stainless Steel |
| Product Includes: | Dodge Hood Mount 18' RingRing CB Coax |
Details

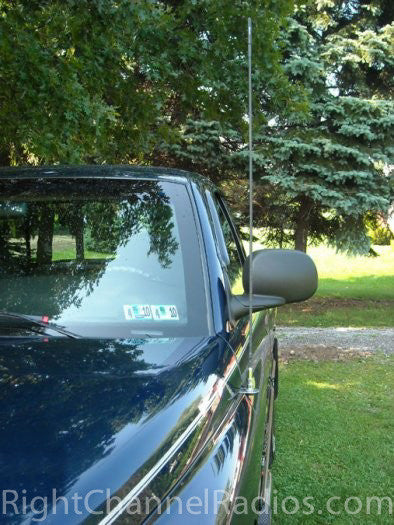

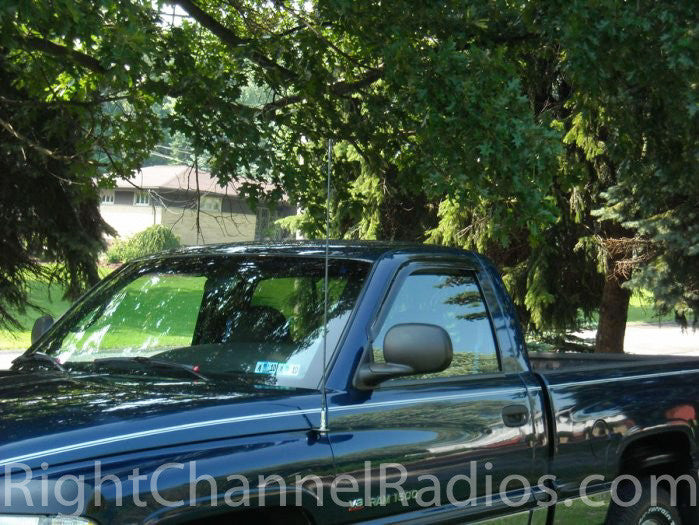

The SS184 stainless steel mount is primarily used to install antennas on 1994 through 2003 Dodge Ram and Dakota pickups. (Due to body changes made in 2004, this mount will not fit 2004 and newer vehicles). When the hood is open, the fender bolt near the firewall is removed (right or left side) and later reused to bolt the antenna bracket to the fender lip under the hood. All mounting hardware is invisible unless the hood is open. Additional stainless steel sheet metal screws are supplied for extra strength. The bracket has a predetermined bend and does not interfere with hood closure. The bracket is 2" (51mm) wide by 4.1" (104mm) long. The stud requires terminal or ring-style coaxial connectors. However, we offer a mini kit containing the bracket and Procomm Pro Ring 9' Coax Cable with FME in one package. So, if you don't already have the coax, the mini kit (MK-184R) would be a better choice.
