Product Status Notice This product is EOL (End of Life). Please order: Unit MQTT-PoE
Description

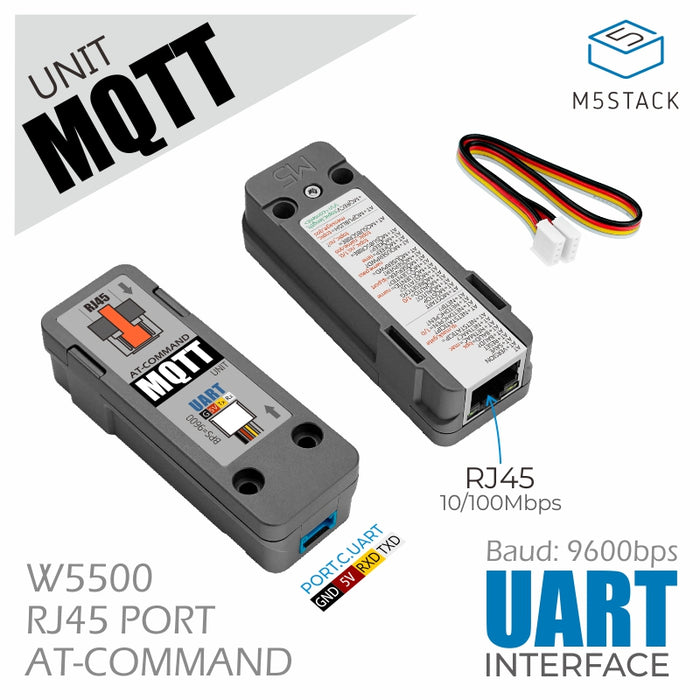

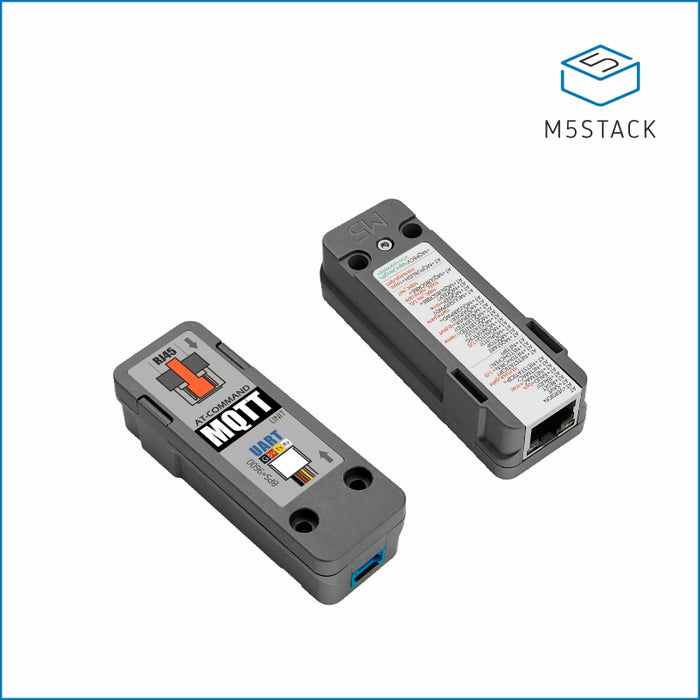

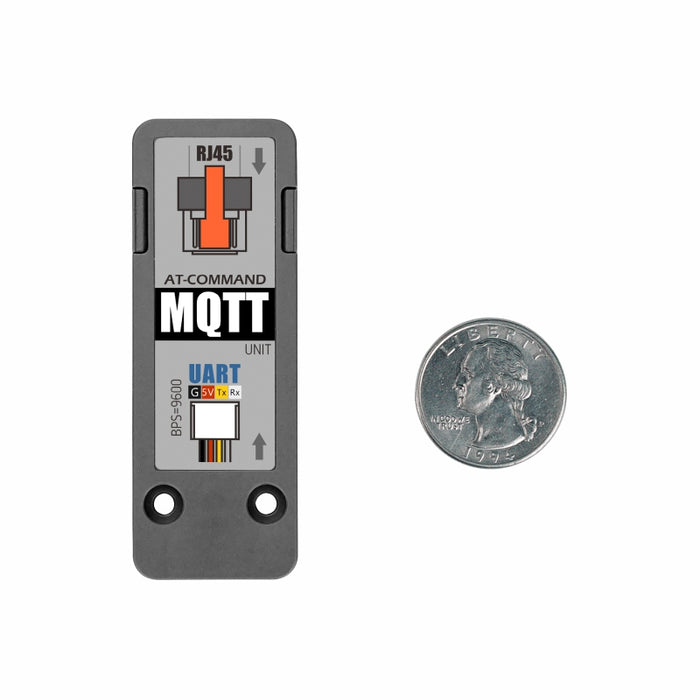

Unit MQTT is an Ethernet MQTT communication module with an embedded W5500 Ethernet chip. It uses a UART communication interface (controlled by AT commands) and integrates an RJ45 adaptive 10/100M Ethernet port. It supports 4x Topic subscriptions. With extremely low network latency and high stability, it is suitable for various industrial automation, security monitoring systems, automatic measurement and control systems, and device data cloud applications.
Features
- Embedded W5500 Ethernet chip
- RJ45 Ethernet port 10/100Mbps
- Ethernet MQTT communication
- Supports 4x Topic subscriptions
- Low latency
- Development methods:

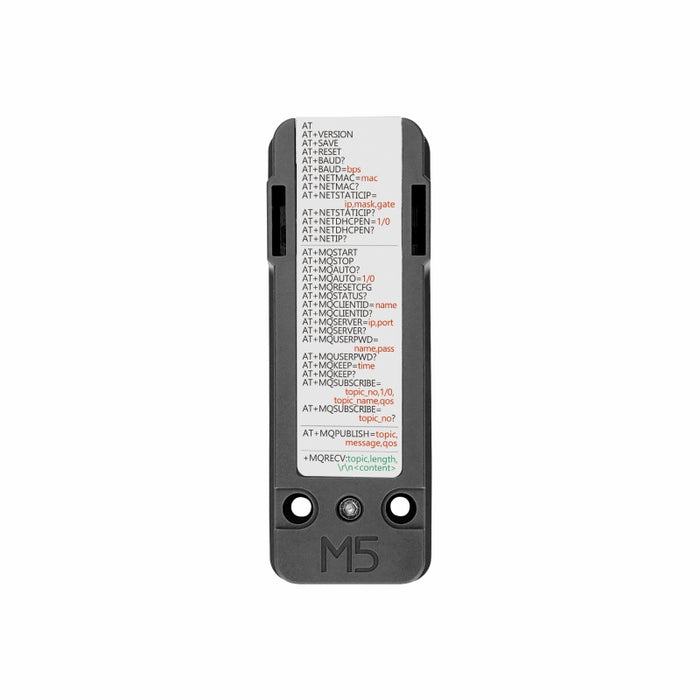

- AT commands, UART: 9600bps default
- Development platforms: UIFlow, Arduino
Includes
- 1 x Unit MQTT

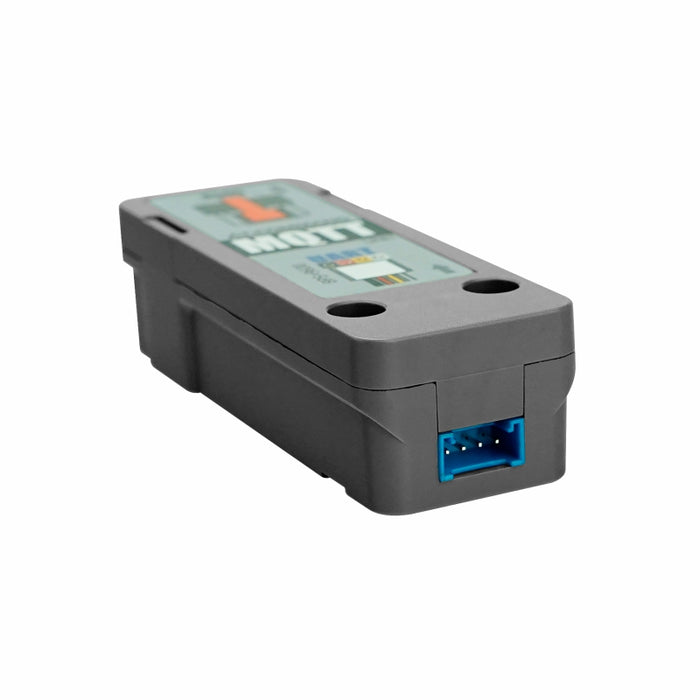

- 1 x HY2.0-4P Grove cable (20cm)
Applications
- Remote data collection/cloud upload
Specifications
| Specification | Parameter |
|---|---|
| Module Processor | ARM Cortex-M3 |
| Communication Interface | UART: baud 9600bps 8N1 default |
| MQTT | Supports 4x Topic subscriptions, does not support MQTTS |

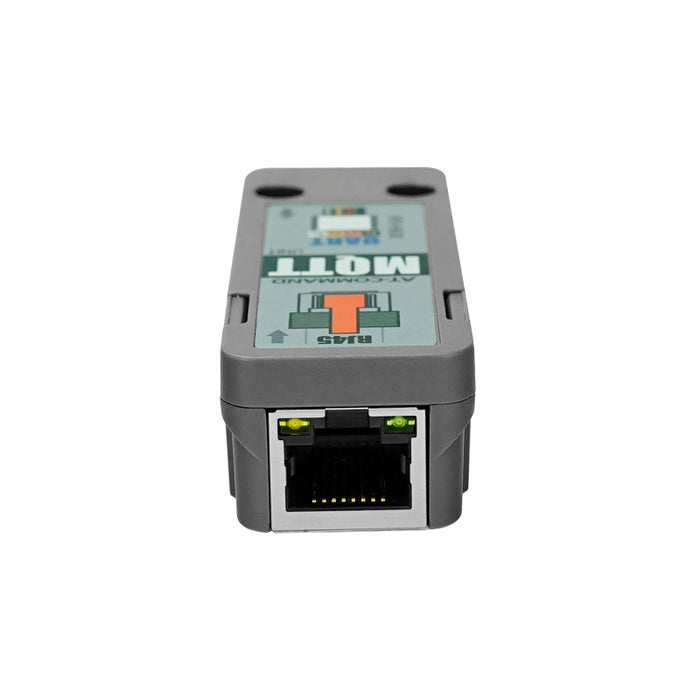

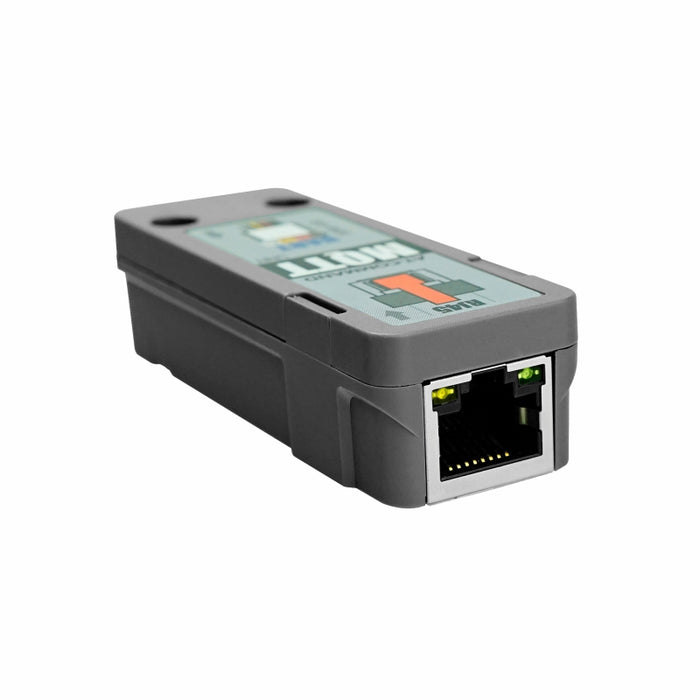

| Ethernet Port | RJ45 adaptive 10/100M Ethernet port |
| Delay | Latency `10ms |
| Standby Current | 40.4mA |
| Net Weight | 22.4g |
| Gross Weight | 27.2g |

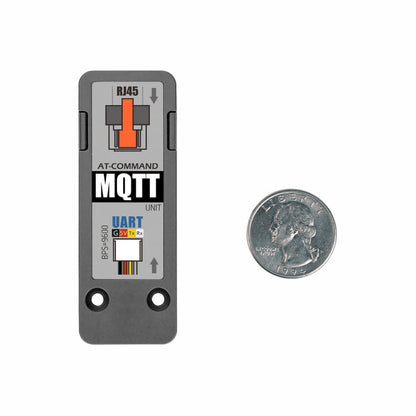

| Product Size | 72 x 26 x 19mm |
| Package Size | 73 x 35 x 20mm |
