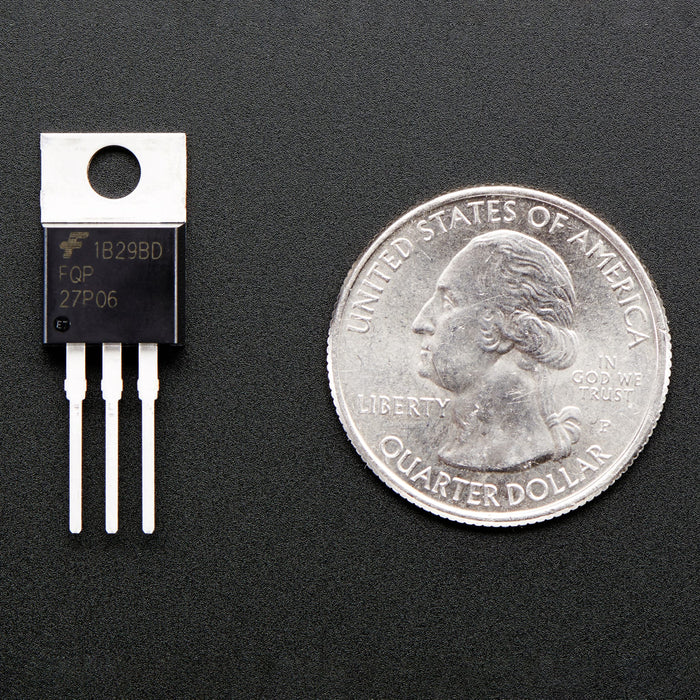

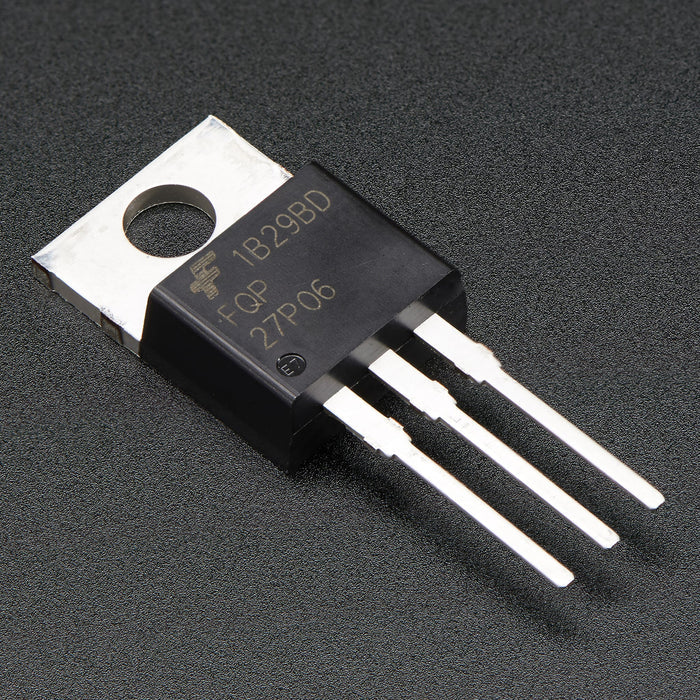

P-channel Power MOSFET - TO-220 Package (25A / 60V)

This P-Channel Power MOSFET is ideal for high-side switching of high-current loads, offering low on-resistance and direct 5V logic control for power management, motor control, and other high-power electronics projects.

When you need to switch a lot of power, P channel MOSFETs are best for the job. These P-FETs can switch over 60V and 25A (with proper heat-sinking) and are TO-220 package so they fit nicely into any breadboard or perfboard.

Heat sinking is easy with TO-220s, but because of the very low Rds(on) of down to 70 mOhms (depending on the Vgs - check the datasheet) you can get away with no heatsinking for pretty high loads! The threshold voltage is up to 5V for 20A of current, so you can control it directly from a microcontroller running on 5V logic.

Check out the datasheet which includes pinout information and a lot more details

The TO-220 package can dissipate up to 2W without a heat sink (at room temperature). Because it has an Rds of <100 milliohms at 5V-12V logic, that means that you can switch about 10 Amperes without a heat sink - more if you use PWM.

For more detailed calculations, we suggest this site which has always worked nicely!

Features

• Drain-Source Breakdown Voltage: -60 V
• Gate-Source Breakdown Voltage: +/- 25 V
• Continuous Drain Current: 27 A
• Minimum / Maximum Operating Temperature: -55ºC / 175ºC

Specifications

• Height (incl. pins): 28mm
• Width: 10mm
• Length of Pins: 13.5mm
• Weight: 2g

Resources

• Datasheet (with pinout)
• Driving LED strips with Arduino PWM with power N FETs

Package Contents

• 1x P-channel Power MOSFET - TO-220 Package (25A / 60V)
