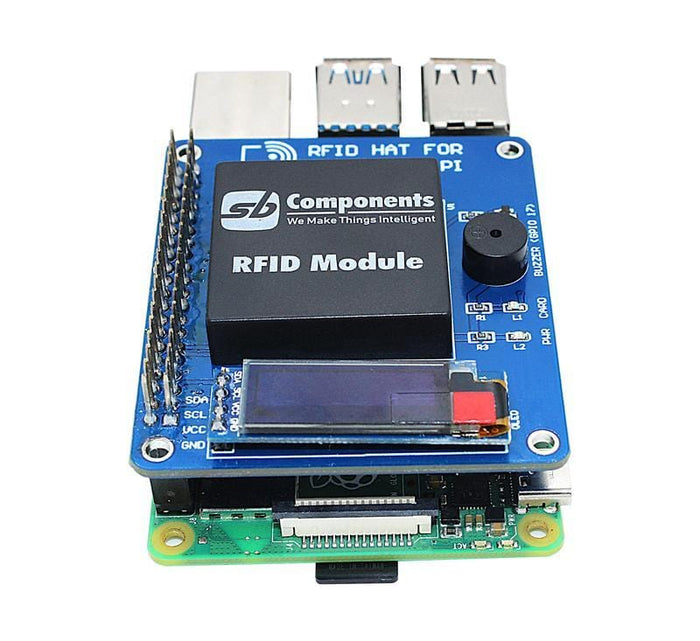

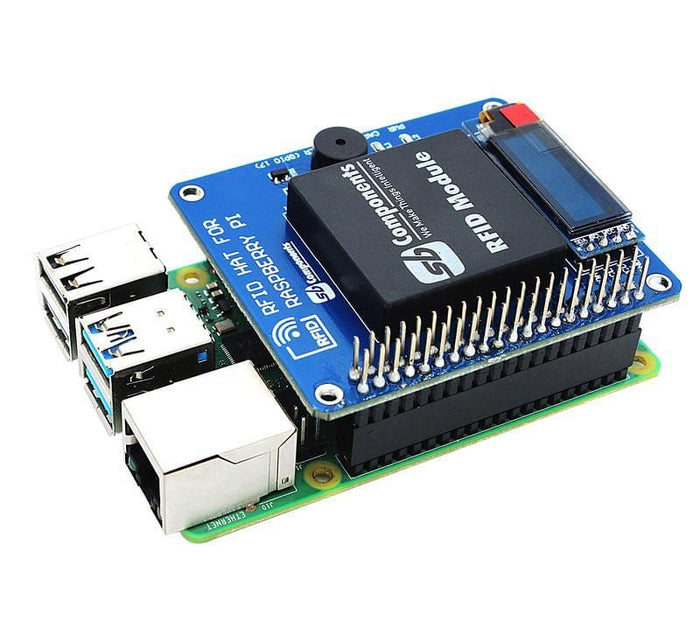

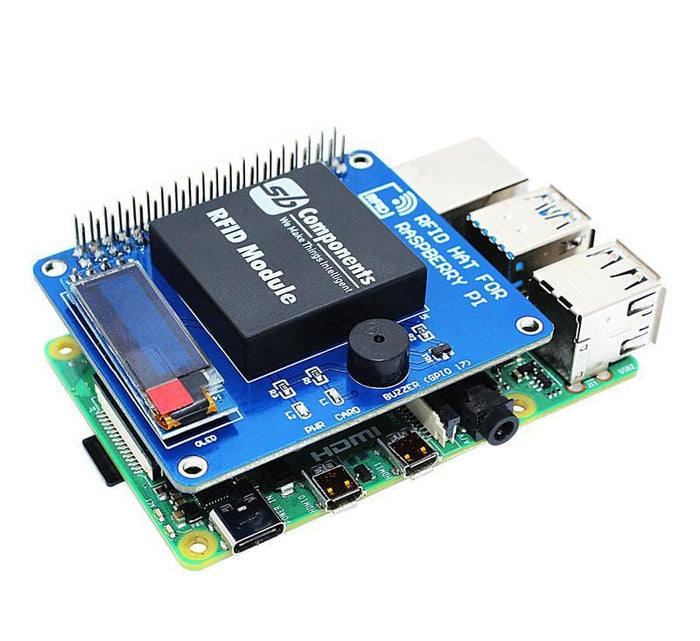

The RFID HAT for the Raspberry Pi boasts an updated UART interface running at the frequency of 125KHz with a compact design which includes a programmable 0.91” OLED Display.

The HAT is compatible with variants of Raspberry Pi with a 2x20 header. Your project will be able to read the ID information stored on the RFID key fob and tags.

Note: Raspberry Pi not included

Features

  • Standard Raspberry Pi 40-pin GPIO header
  • UART Communication Interlace
  • Comes with development resources and manual
  • Supports all Raspberry Pi boards with a 2x20 header
  • Onboard Programmable 0.91" OLED Display
  • Programmable Buzzer
  • Supports 125 KHz Cards / Keyfob /Tags

Resources

  • GitHub

Kit Contents

  • 1x RFID HAT

Specifications

  • Operating voltage 5V
  • Operating frequency 125KHz
  • Communication interface UART
  • Default baudrate 9600 bps
  • Dimensions 65mm x 56mm
