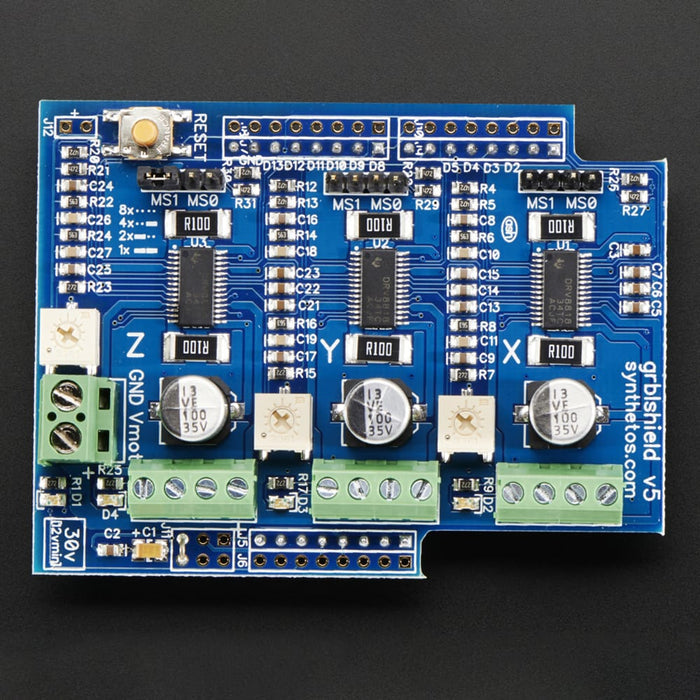

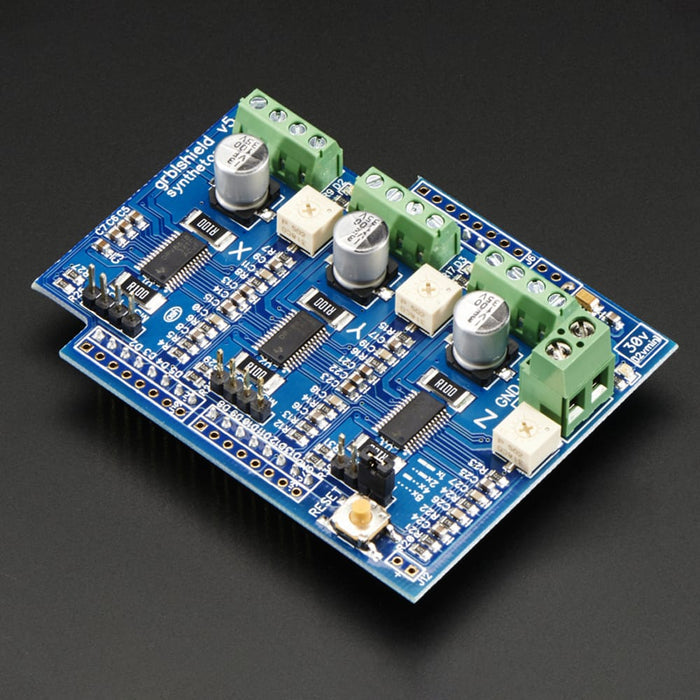

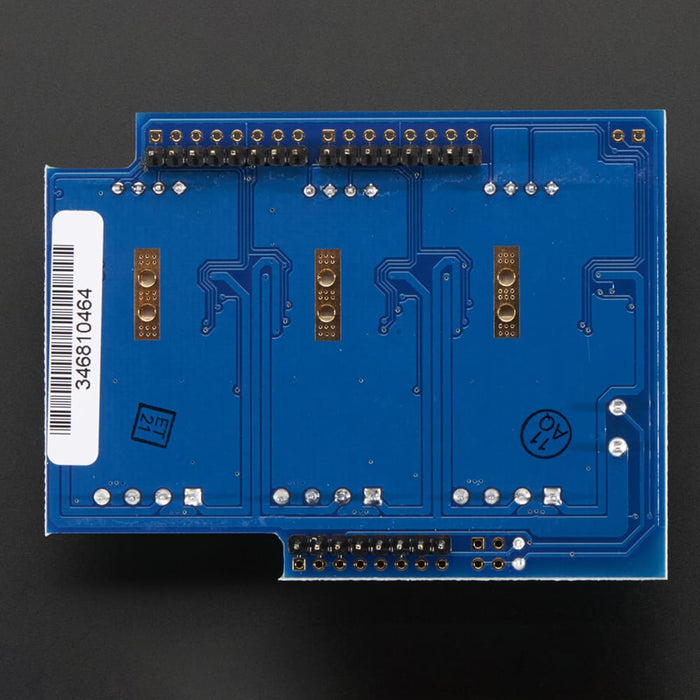

Synthetos gShield (grblShield) V5

The gShield CNC Controller transforms a compatible Arduino into a powerful 3-axis CNC motion controller, providing an easy way to build CNC machines, laser cutters, plotters, and other precision motion projects.

Create your very own Arduino-controlled 3-axis CNC machine with the gShield. The gShield for Arduino (formerly known as grblShield) is a complete hardware solution for Dank’s CNC motion control system called grbl.

The gShield is compatible with the Uno and other 328p versions of the Arduino development platform. Version 5 is now compatible with running TinyG on the Arduino Due. The v5 power jumper simply allows the gShield to be run as a native 3.3v device from the Due, instead of a 5v device.

Features

• 2.5 Amps per winding
• 12-30 Input Voltage
• Open Pin Pass Through
• 8x Micro stepping
• Screw Down Terminal Voltage Input
• Hardware 3x Axis (x,y,z)
• 3x Robust TI DRV8818 Stepper Drivers

Specifications

• Dimensions: 58mm x 78mm
• Board Thickness: 2mm
• Weight: 31g

Resources

• Schematic
• Synthetos forum

Package Contents

• 1x Synthetos gShield (grblShield) V5
