Description

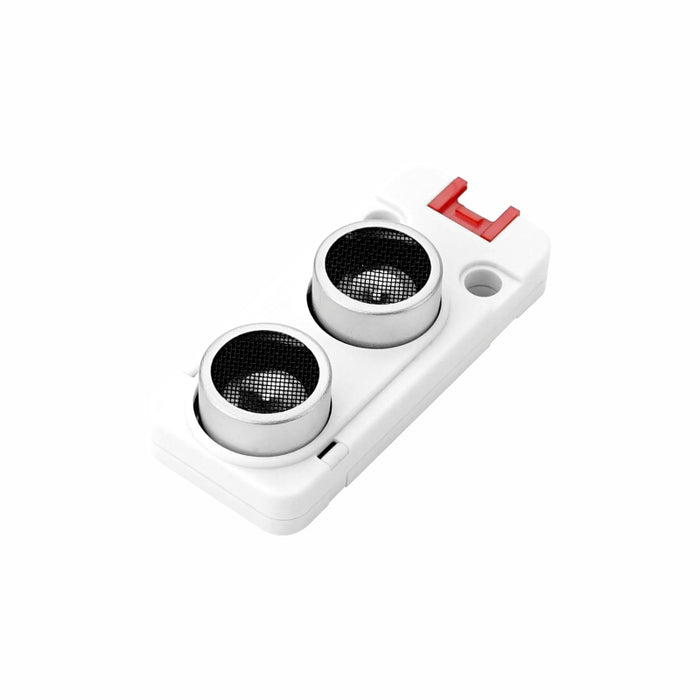

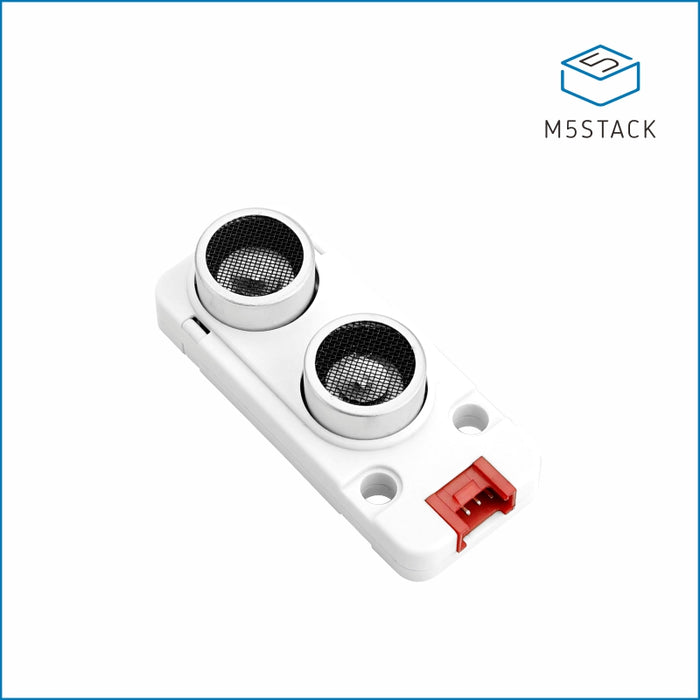

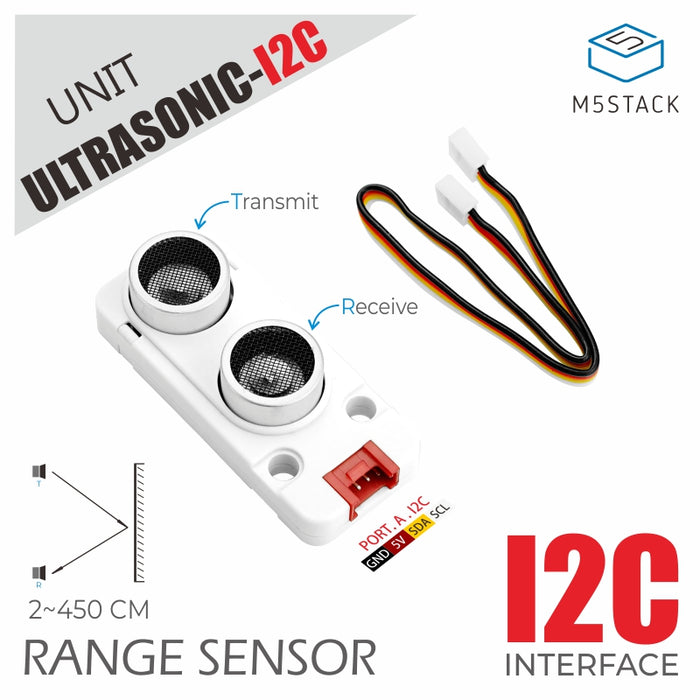

The Unit Ultrasonic-I2C is an ultrasonic distance measurement sensor with an I2C communication interface. The hardware utilizes the RCWL-9620 ultrasonic distance measurement chip paired with a 16 mm probe, enabling precise distance measurement within a range of 2 cm to 450 cm (with an accuracy of Β±2%). As an I2C slave device, the sensor can share bus resources with other I2C devices, maximizing IO resource savings. It is ideal for applications such as robot obstacle avoidance and liquid level detection.
Note When measuring distances greater than 3.5 meters, there may be a slight delay in the distance measurement response.
Features
- RCWL-9620
- I2C communication interface (addr: 0x57)
- Range: 2cm-450cm
- Protective cover for stable circuit operation
- Built-in temperature compensation to reduce probe temperature drift
- Supports UIFlow graphical programming

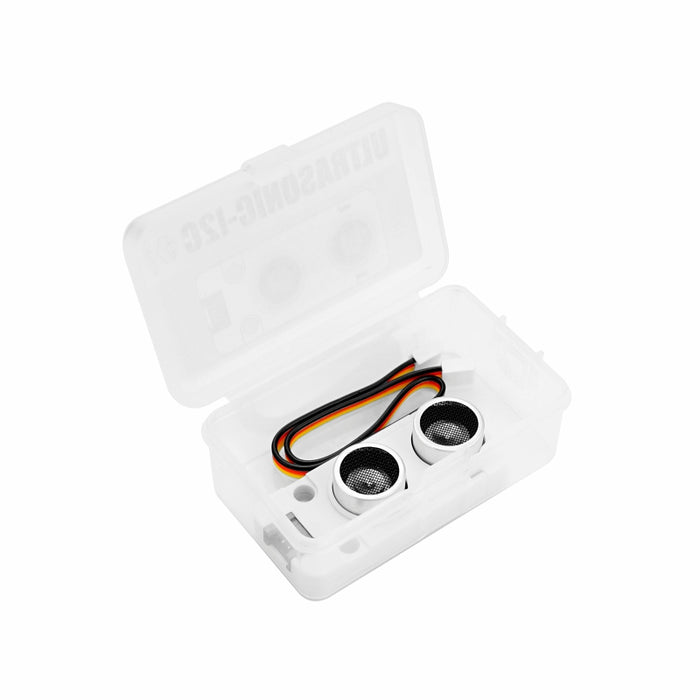

Includes
- 1 x Unit Ultrasonic-I2C
- 1 x HY2.0-4P Grove cable (20cm)
Applications
- Robot obstacle avoidance
- Liquid level measurement
- Posture detection
Specifications
| Specification | Parameter |
|---|---|
| Ultrasonic Ranging SoC | RCWL-9620 |
| Range | 2cm ~ 450cm |
| Communication Interface | I2C @0x57 |
| Probe Specification | 16mm |
| Receive / Transmit Frequency | 40KHz |
| Receiving Sensitivity | -65dB |
| Directional Angle | 60Β° |
| Measurement Accuracy | Β±2% |
| Measurement Cycle | 50ms |
| Working Current | 3mA |

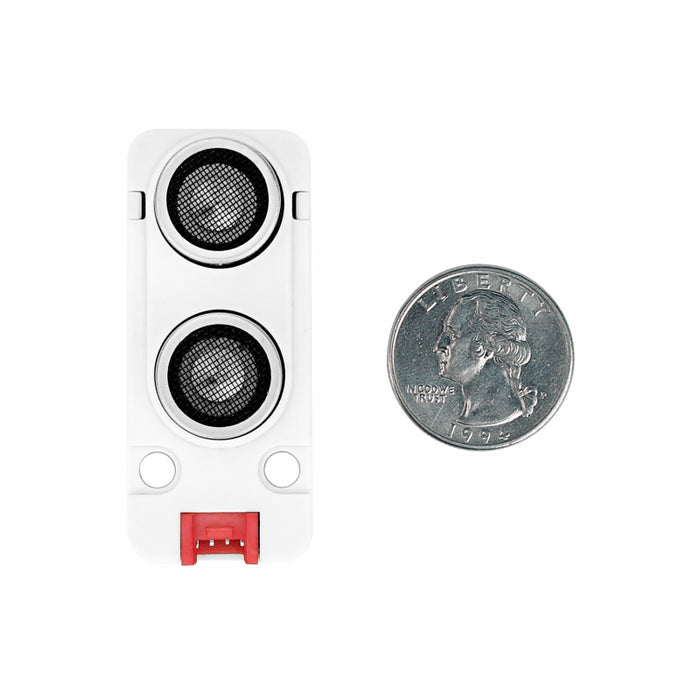

| Product Size | 56.0 x 24.0 x 15.0mm |
| Product Weight | 10.0g |
| Package Size | 75.0 x 45.0 x 30.0mm |
| Gross Weight | 26.0g |
