Unit - Gesture recognition sensor (PAJ7620U2)

Description

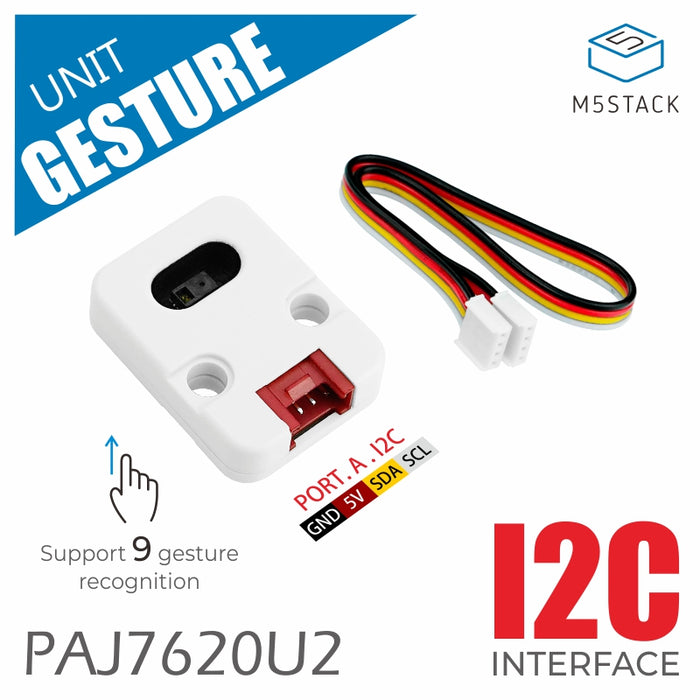

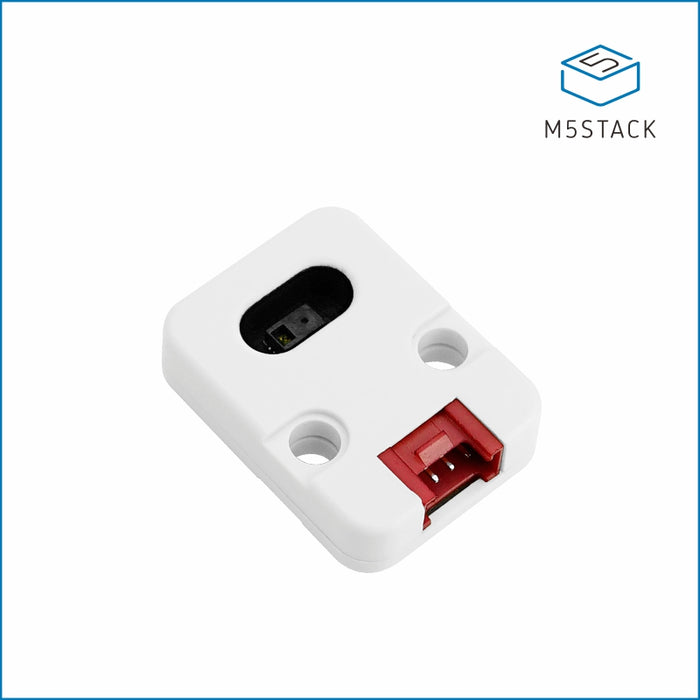

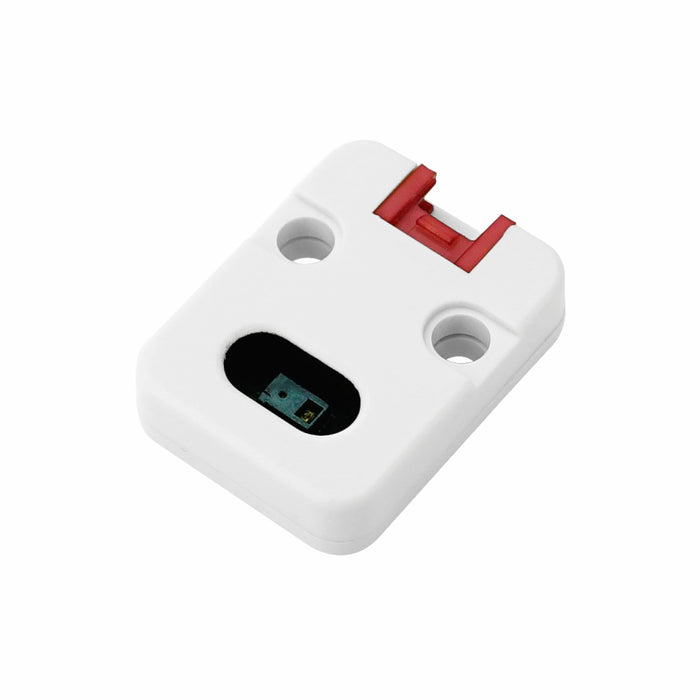

Unit Gesture is a 3D gesture recognition sensor using the I2C communication interface. It adopts the PAJ7620U2 sensor solution, with the program by default supporting 9 types of gesture recognition. The maximum gesture update frequency can reach 240Hz, and it has a certain level of ambient light interference resistance. It supports custom unit sampling time and can add recognition gesture combinations through program algorithms as needed. The sensor features strong stability, fast recognition speed, high accuracy, and low power consumption (operating current only 2.2mA), making it suitable for various applications such as non-contact remote controls, robot interaction, human-computer interaction games, and gesture light control.

• Supports 9 gestures:
  • Up, Down, Left, Right, Forward, Backward, Clockwise, Counterclockwise, Wave

Features

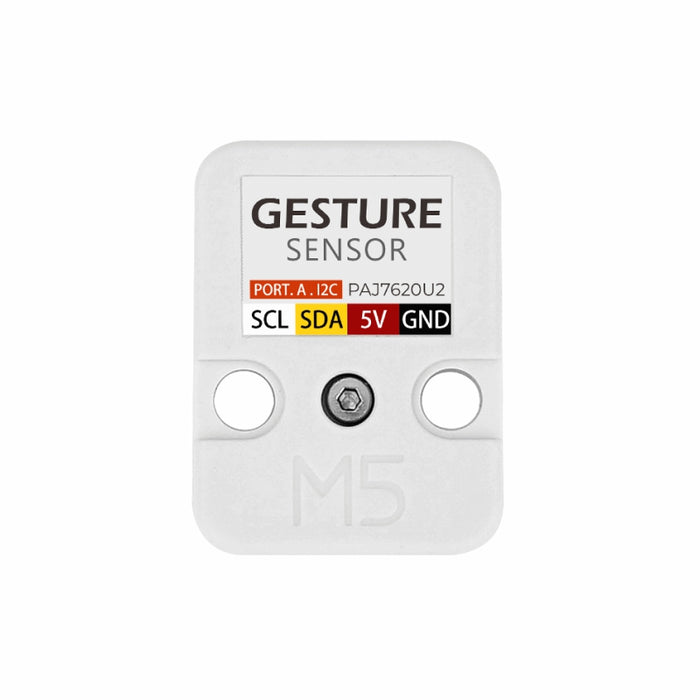

• PAJ7620U2 gesture sensor / I2C interface
• 9 recognizable gestures
• Fast recognition speed, high accuracy, strong interactivity
• Supports custom addition of recognition gesture combinations (requires secondary software development)
• Effective recognition distance: 5cm-15cm
• Built-in infrared LED and optical components, with ambient light immunity
• Development platforms: Arduino, UIFlow

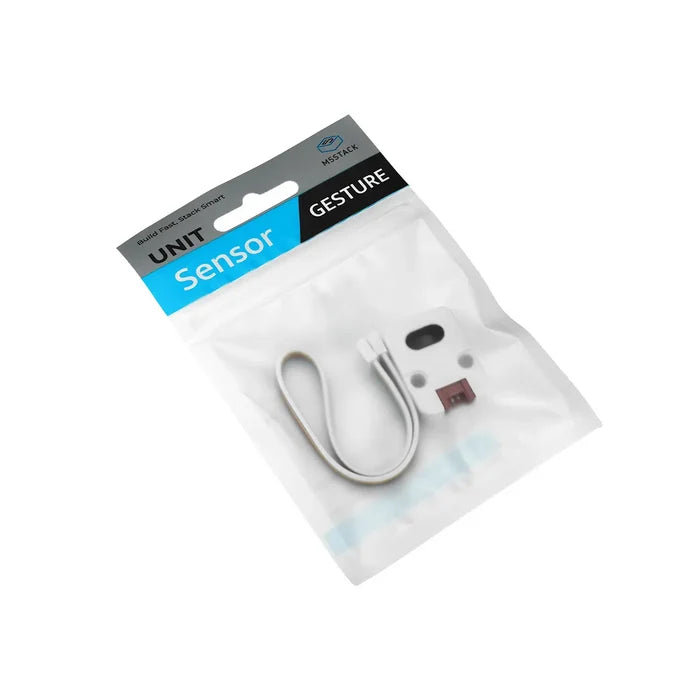

Includes

• 1 x Unit Gesture
• 1 x HY2.0-4P Grove cable (20cm)

Applications

• Non-contact remote controls
• Robot interaction
• Human-computer interaction games
• Gesture light control

Specifications
